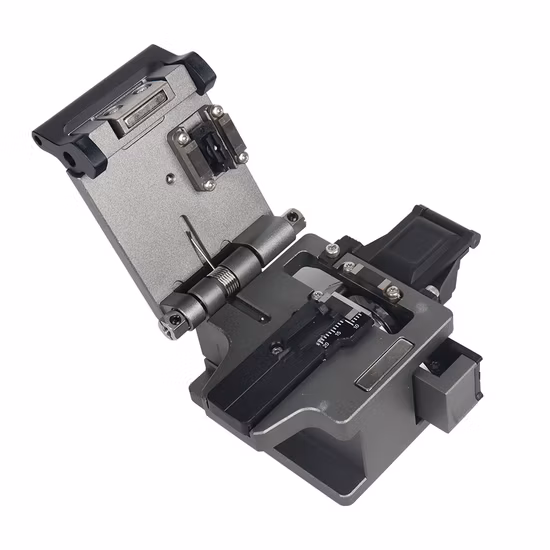

Fiber Cutting Machine Mini FTTH Fiber Cleaver for Fiber Optic Cables
Mini FTTH Fiber Cleaver Features Traditional bench top design, simple and easy to use.Blade life 48,000 cleavesTypical C
Basic Info
| Model NO. | KL-23F |
| Number of Pieces | 18 |
| Application | Fiber Cable Use |
| Size | 240*150*210mm |
| Transport Package | Standard Carton |
| Trademark | SOFTEL OEM |
| Origin | Zhejiang, China |
| HS Code | 852871100 |
| Production Capacity | 10000 PCS/Month |
Product Description
Mini FTTH Fiber CleaverFeatures
Traditional bench top design, simple and easy to use.Blade life 48,000 cleavesTypical Cleave Angel 0.5°
Double Fiber HoldersApplicable to 250μm, 900μm, 3.0mm fiber cable and flat cableSpecification
| Fiber Material | Silica glass |
| Cladding Diameter | 125μm |
| Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |
| Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable |
| Typical Cleaved Angle | Less than 0.5° |
| Typical Blade Life | Total 48,000 fiber cleaves (replaceable) |
| Off-cut Collector | Pre-fitted |
| Type of Offcut Bin | Manual |
| Auto Return | Pre-fitted |
| Dimension | 63W *77D*63H(mm) |
