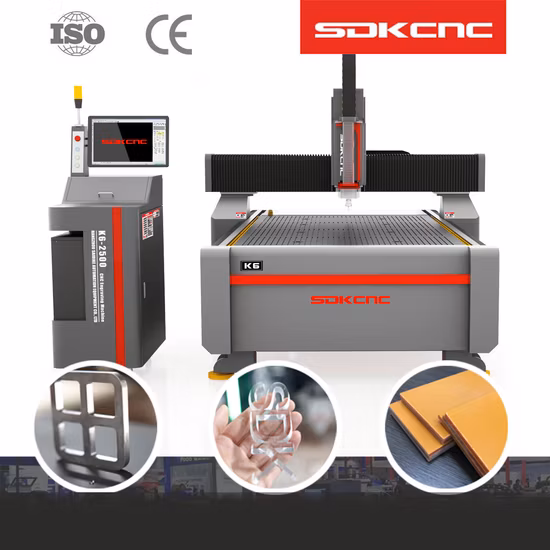

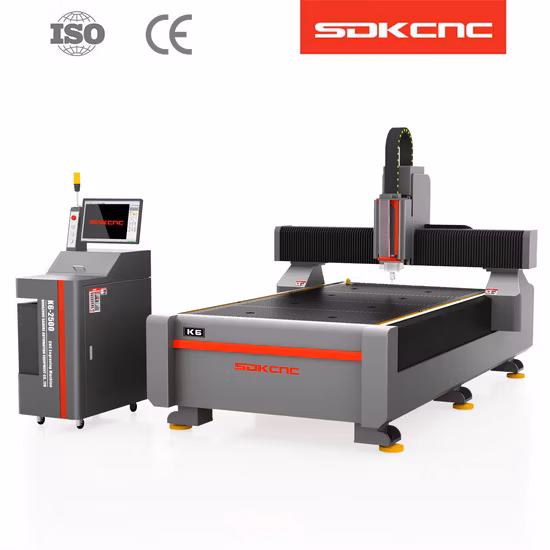

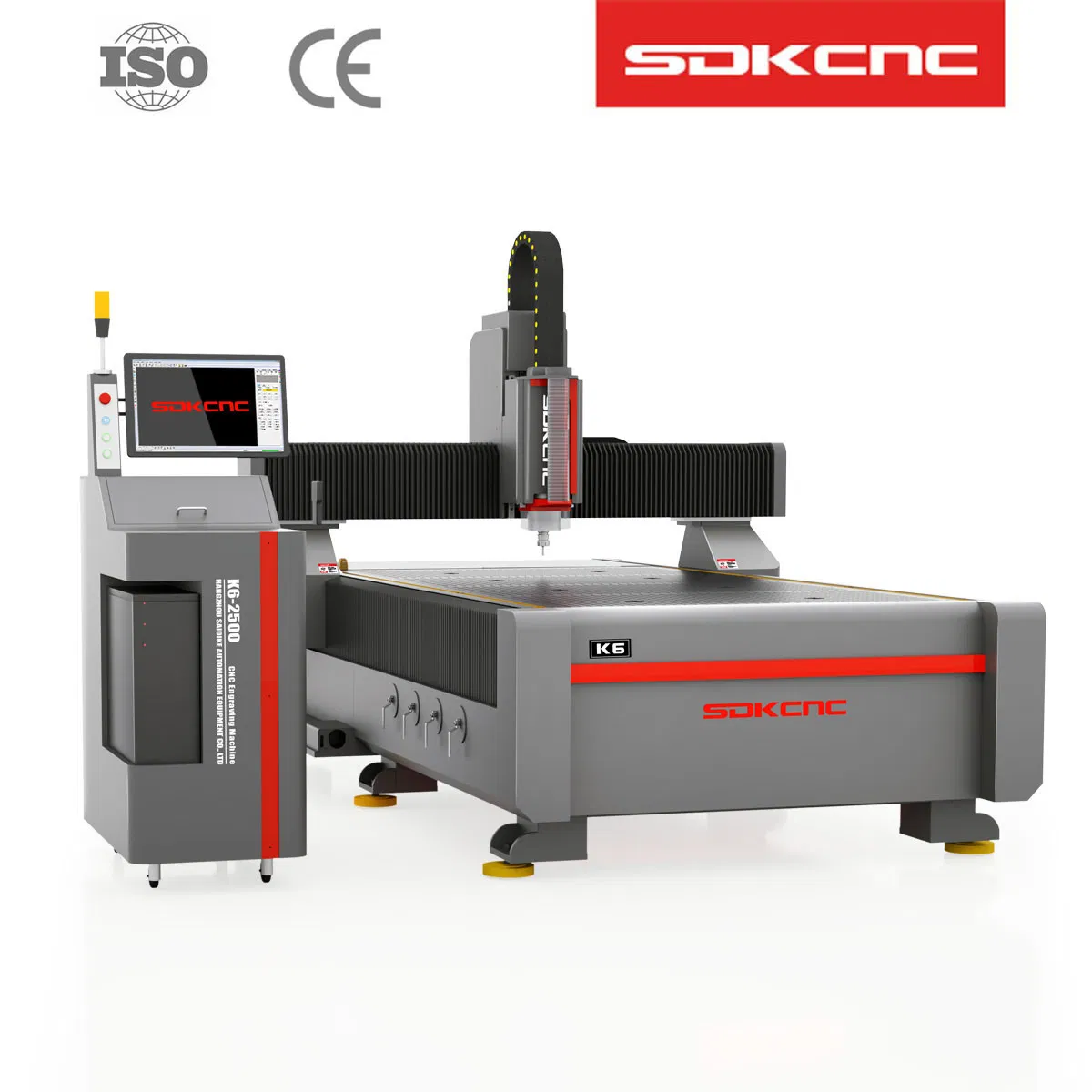

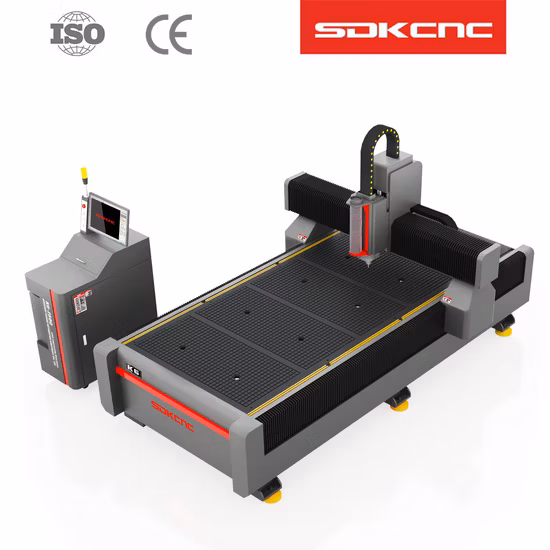

Cheap CNC Engraving Carving Cuting Machine Woodworking Furniture Making MDF Fiber Board Stone 3D Enravging 3 Axis CNC Multi Head Router Other Woodworking

Basic Info

Model NO.	GD-1325
Type	Engraving Router
Spindle Layout	Horizontal
Spindle Number	Double-Spindle
Feed Mode	Mechanical
Controlling Mode	CNC
Certification	CE, ISO
Customized	Customized
Condition	New
Color	Customized
Product Name	1325 Atc Processing CNC Router
Control System	Lnc/Syntec
Spindle	9kw Atc Spindle
Transmission	Rack
Table	Vacuum Suction
Spindle Power	9kw
Table Surface	Vacuum Suction Table
Working Aera	1500*3000*200mm
Application	Woodworking
Key Words	CNC Woodworking Router
Table Size	1500*3000mm
Max Working Speed	30m/Min
Structure	Stable Table
Packing	Wood Case
Voltage	380/220V
Transport Package	Woodcase
Specification	1000kg
Trademark	Guandiao
Origin	Jinan, China
HS Code	8465990000
Production Capacity	50000pieces/Year

Product Description

Product description

Technical Parameters

Model	GD-1325	Gd-1530
XY working area	1300*2500mm(customized)	1500*3000mm
Z axis	200mm
Transmission system	XY axis: Helical gear rack Z: Taiwan TBI ball screw
Guide rail	Taiwan Hiwin/PMI linear square rail
Working Table	Vacuum adsorption
Repositioning Accuracy	±0.03mm
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Spindle	9.0kw ATC air cooling spindle
Control system	Taiwan SYNTEC control system
Command	G-code
Drive system	Japan YASKAWA servo motor and driver
Inverter	Delta
Spindle Speed	0-24000rpm/min
Working Voltage	AC380V±10%, 50/60Hz
Warranty	One year
Payment	30% T/T in advance, the balance to be paid before shipment
Package	wooden case

Features
1.This atc cnc router machine adopt automatic tool changer spindle makes machine with high precision, long service time and stable movement.2. Configured with Linear tool magazine of 10, 12 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.3.Vacuum worktable in European standard are used in this atc router table cnc for carpentry, positioning cylinder can be added which make material positoning easily and fast.4.With high-performance Japan YASKAWA servo motor, the Machine can work in high precision.The servo motor runs smoothly,no vibration phenomenon even in the low speed.And it has a strong ability of overload.5.Syntec controller-enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.6. Z axises adopt Taiwan TBI ball screw transmission, X/Y/Z axis adopt Taiwan Hiwin square rail high precision, the structure is more stable. 7. Delta inverter,is one of the best inverter over the world,in addition to the advantage of Fuling inverter, thelife time ofDelta inverter is more longer and it can guarantee higher precision.

Machine details

Samples show



Company informationGuandiao
The company has a factory building of 6,000 square meters and an office area of 1,500 square meters. The application is reasonable. The production area is constructed in strict accordance with the national safety and environmental protection policies to ensure a reasonable delivery period.

We have a well-established sales and marketing team, technical research and development team, and after-sales service team to meet the needs of the market and customers.

Packing and shipping

Our services
1. 1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. 2. Lifetime maintenance free of charge.3. Free training course at our plant. 4. We will provide the consumable parts at an cost price when you need replacement.5. 24 hours on line service each day, free technical support. 6. Machine has been adjusted before delivery.If you have any questions about us, please contact me with no hesitate.

FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Teamviewer" online, with telephone or Skype explain.2. Are you a factory or trading company?
A: We are a factory.3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.
